SRAM UDH (Universal Derailleur Hanger): Advantages, Features, and Installation Guide

In recent years, addressing the issues of fragmented derailleur hanger standards and the difficulty of replacement, the bicycle industry has seen a wave of standardization. SRAM’s Universal Derailleur Hanger (UDH) was developed precisely to solve these problems. According to SRAM, the UDH was designed to "consolidate thousands of hanger designs into one universal model, making replacement easier and improving shifting performance by reducing variables." Since its introduction in 2019, UDH has been widely adopted by leading mountain bike manufacturers and is rapidly becoming a standard on performance and next-generation bikes.

Design Philosophy

The core concept behind UDH is to standardize the mounting position and method for rear derailleurs. By ensuring a consistent derailleur mounting point, UDH delivers a more stable and precise shifting experience across different drivetrain systems and frames.

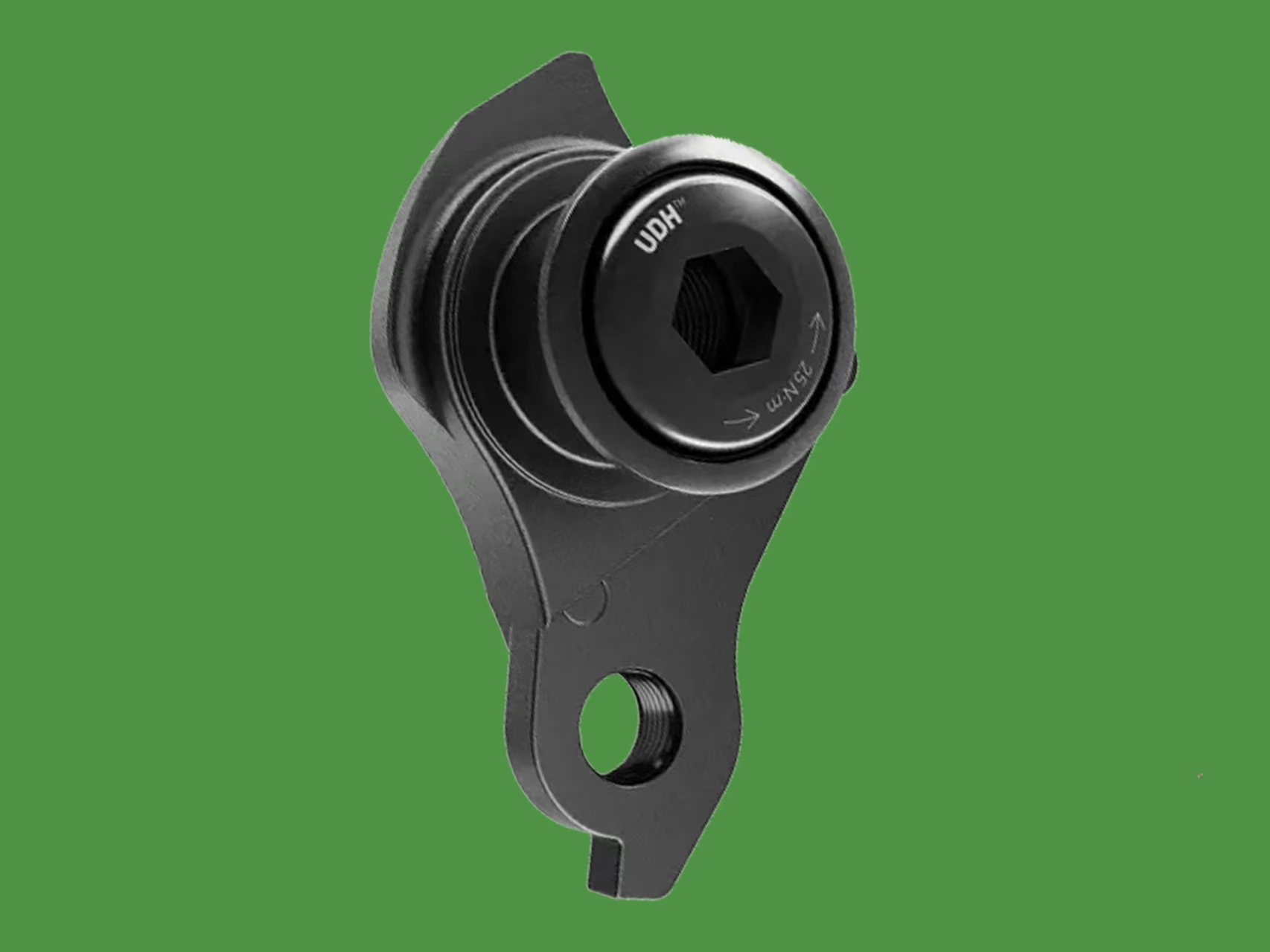

Unlike traditional hangers, UDH uses a simple two-piece structure: a high-strength steel hanger body and a dedicated UDH mounting bolt. In some frame designs, a specific UDH washer is also required. Standardizing the mounting location eliminates the shifting inconsistencies often caused by minor positioning errors in traditional setups, thereby improving drivetrain precision.

UDH’s design also takes real-world impacts into account. In the event of chain jams or external impacts, the hanger can rotate backward to absorb forces and protect the derailleur. It also features a built-in chain guide at the front edge, which helps to re-align a dropped chain back onto the cassette. This energy-absorbing rotation mechanism and chain recovery design significantly reduce the risk of derailleur and frame damage during crashes.

Broad Compatibility

As an open industry standard, UDH offers broad compatibility with a wide range of drivetrain systems. It is not restricted to SRAM components—other brands such as Shimano can also be used seamlessly with UDH-equipped frames.

This compatibility stems from UDH’s unified mounting interface: any frame compliant with UDH specifications uses the same derailleur hanger attachment method, allowing riders to swap between different rear derailleurs without worrying about mismatches. Thanks to this design, UDH has been embraced by numerous leading mountain bike manufacturers, eliminating the compatibility barriers often seen with proprietary hanger designs.

Today, many mainstream mountain bikes—and even some gravel and road models—come standard with UDH, and this adoption is continuing to grow.

Durability and Protection

UDH excels in terms of durability and protection:

• Material Strength: The hanger is made from robust steel, enhancing impact resistance compared to traditional aluminum hangers.
• Impact Absorption: The rotational design allows the hanger to pivot slightly under force rather than snapping, thus dispersing the energy from impacts.
• Chain Management: The integrated chain guide helps re-seat a dropped chain onto the smallest cog, preventing drivetrain jams.
• Precision Alignment: Because of the unified standard, UDH ensures better rear derailleur alignment, minimizing the risk of mis-shifting even under harsh trail conditions.
• These features significantly enhance drivetrain reliability and provide peace of mind for riders tackling aggressive trails or long-distance adventures.

Maintenance and Replacement Convenience

Another major advantage of UDH is the ease of maintenance and replacement. Traditionally, each bike model required a specific hanger, and sourcing the correct one could be challenging. With UDH, however, replacement becomes straightforward: any UDH-compliant hanger fits any UDH-compatible frame, greatly simplifying logistics for riders and shops alike.

This means that whether on a casual ride or in a race situation, riders can quickly find a replacement hanger without worrying about specific model matching. Furthermore, many third-party manufacturers now offer UDH hangers in different materials and colors, allowing for aesthetic customization while maintaining full functionality.

Overall, UDH significantly shortens repair times, reduces maintenance costs, and enhances the overall ownership experience.

Installation Steps

Installing a UDH hanger is simple and intuitive, with the following general steps:

1. Shift to the smallest cog: Set the rear derailleur to the smallest gear and disengage the clutch mechanism if applicable.
2. Remove the derailleur: Loosen the rear derailleur mounting bolt and detach the derailleur from the frame.
3. Remove the rear wheel: Remove the rear axle (commonly M12×1.0 thread pitch) and take out the rear wheel.
4. Remove the old hanger: Use a hex wrench to unscrew the UDH bolt (note: the UDH bolt has reverse threading, so turn clockwise to loosen).
5. Clean the mounting surface: Wipe the dropout area clean with a cloth or isopropyl alcohol to ensure a debris-free surface.
6. Install the new UDH: Insert the new UDH hanger into the dropout, making sure the alignment pin seats properly. If the frame requires a UDH washer, place it before installation.
7. Tighten the mounting bolt: Insert the UDH-specific bolt through the hanger into the frame, tightening counterclockwise (reverse thread) to approximately 25 Nm using a torque wrench.
8. Reassemble: Reinstall the rear wheel and reattach the derailleur, adjusting the shifting as necessary.

Thanks to the standardized geometry of UDH, once properly installed, minimal fine-tuning is needed to achieve precise shifting performance.

Conclusion:

By adopting the SRAM UDH system, riders can enjoy a more stable shifting experience, better drivetrain protection, easier maintenance, and greater compatibility across brands and components. With its robust design and open industry acceptance, UDH is truly a forward-looking solution for modern bicycle drivetrains.
